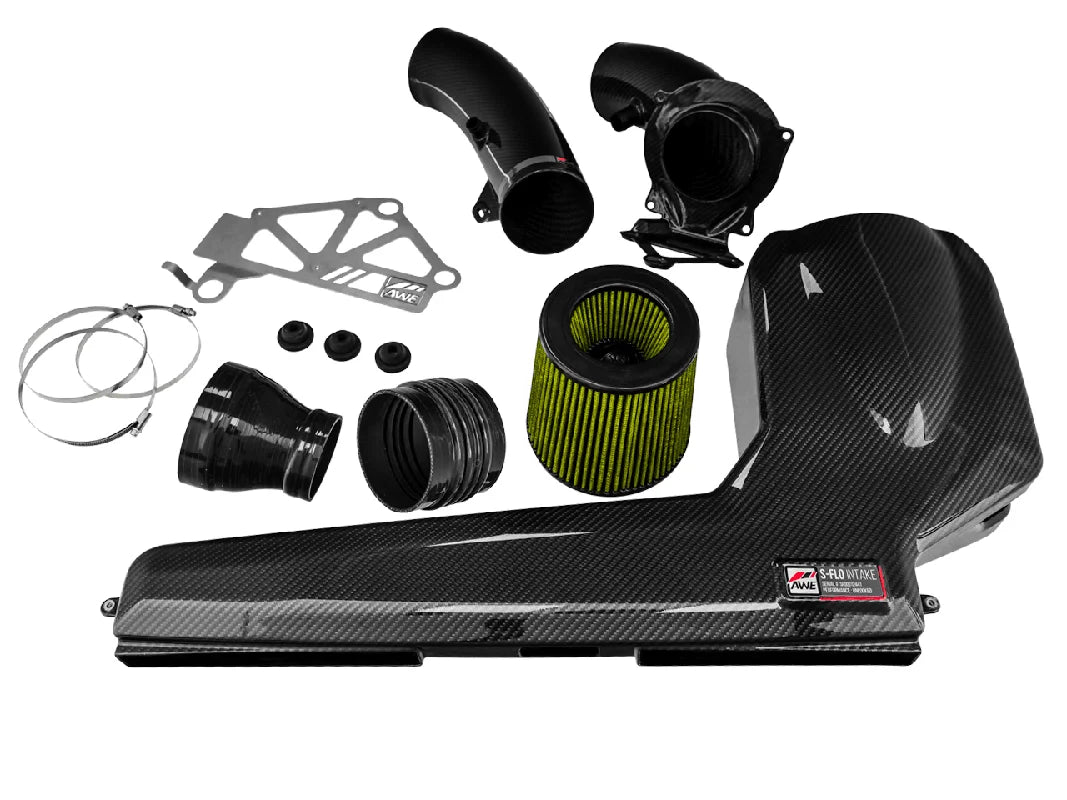

AWE 4.5" S-FLO Carbon Fiber Intake - Audi 8V RS3/Mk3 TT-RS

Description The largest diameter intake system available for the Audi 8V RS 3 and Mk3 TT RS on the planet Designed, engineered, and tested in-house at AWE Max gains of 7 hp and 2 ft-lbs of torque at the wheels (S-FLO Open Carbon Intake System, stage 1 software) Max gains of 17 hp and 6 ft-lbs of torque at the wheels (S-FLO Closed Carbon Intake System, stage 1 software) Massive 4.5″ carbon intake tube 30% increase in filter surface area overstock Increased in overall airbox volume Completely modular design allows multiple configuration options and an upgrade path.

Available as S-FLO Carbon Inlet Tube, S-FLO Shortie Carbon Intake (open element), S-FLO Open Carbon Intake System (open element), and S-FLO Closed Carbon Intake System Easily convert between any configuration Intoxicating turbo spool and diverter valve sounds S-FLO Closed Carbon Intake System optimized to capture a significant amount of ram air overstock and allows the entire air filter to be utilized Bespoke CNC-laser-cut stainless support bracket included Features the washable and oil-less high-flow S-FLO Filter Perfect integration with OEM inlet ducting Retains stock mounting locations for OE fit Genuine 2×2 carbon fiber construction.

UV-stabilized resin and clear coat Perfect fitment, guaranteed AWE No Check Engine Light Guarantee The Options S-FLO Carbon Inlet Tube The S-FLO Carbon Inlet Tube is the largest amongst its peers, with impressive adaptability to facilitate maximum gains. The colossal 4.5” S-FLO Carbon Inlet tube bridges the gap between the turbo inlet pipe and the factory airbox seamlessly. The S-FLO Carbon Inlet Tube is for drivers looking to extract the most out of their factory airbox while increasing throttle response. S-FLO Shortie Carbon Intake.

The S-FLO Shortie Carbon Intakes replaces the factory airbox with a massive S-FLO Filter with frontal opening toting a 30% increase in filter surface area, and a 4.5” carbon elbow. All firmly planted via a bespoke CNC laser-cut stainless support bracket. The S-FLO Shortie Carbon Intake is the perfect configuration for drivers looking to uncork beloved turbo noises out of their RS 3. S-FLO Open Carbon Intake System Combine the S-FLO Carbon Inlet Tube with the Shortie Carbon Intake, and you have the impressive (and very vocal) S-FLO Open Carbon Intake System.

A full 4.5” diameter configuration from S-FLO Filter to turbo inlet coupler, this version delivers an increase of 7 hp and 3 ft-lbs of torque at the wheels with an ample dose of turbo induction and diverter valve sounds with each rip of boost. S-FLO Closed Carbon Intake System The S-FLO Closed Carbon Intake System combines each component of the S-FLO suite and adds a bespoke carbon air box. Spanning the entire width of the grille, the S-FLO Closed Carbon Intake is capable of collecting all of the ram air from the front of the vehicle to feed it into the S-FLO Filter.

Thanks to the 2×2 carbon fiber construction, heat soak is subdued during hard driving while the increase in air box volume ensures the 2.5T never runs scarce of cold air. The S-FLO Closed Carbon Intake System unlocks 17 hp and 6 ft-lbs of torque at the wheels, and is capable of handling any higher-than-stock boost level thrown at it. Upgrade path The S-FLO Carbon Intake Suite is modular by design allowing an easy evolution from the S-FLO Inlet Tube or S-FLO Shortie Carbon Intake to the full S-FLO Carbon Intake Systems (open or closed). Go all-in with the S-FLO Closed Carbon Intake System, or tackle it in phases. Your call. S-FLO 4” Coupler.

The S-FLO Carbon Inlet Tube, Shortie Carbon Intake, and Open/Closed S-FLO Carbon Intake Systems come complete with a 4.5” to 3” couplers to mate to the factory 3” turbo inlet pipe. The S-FLO 4” Coupler transitions from 4.5” to 4” to accommodate aftermarket turbo inlet pipes that are 4” in diameter. What’s in the box? Chosen S-FLO Carbon Intake configuration, S-FLO Filter (if applicable), bespoke CNC laser-cut stainless support bracket (if applicable), coupler(s), and all necessary hardware. Notes The AWE 4.5″ S-FLO Carbon Intake Suite is for Racing Use Only Download Installation Guides AWE 4.5″ S-FLO Closed Carbon Intake System.

AWE 4.5″ S-FLO Open Carbon Intake System AWE 4.5″ S-FLO Shortie Carbon Intake AWE 4.5″ S-FLO Carbon Inlet Tube AWE DV Adapter Kit for 2019+ Models.
